Supports AMD Ryzenā¢ 7000 Series Desktop Processors
Supports DDR5 Memory, up to 6000+(OC) MHz
Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
1 Year Warranty
Rs.133,333.00
or 3 installments of Rs.44,444.33 with
Inquire on WhatsApp
Delivery Information (Estimated Delivery Time)
Colombo 1-15 (1-2 Working Days)
Colombo Suburbs (1-3 Working Days)
Other Areas (1-5 Working Days)
Xpress Delivery Available for Colombo 1-15 and selected suburbs only.
Store Pickup: Between 12PM to 5PM from Monday to Saturday

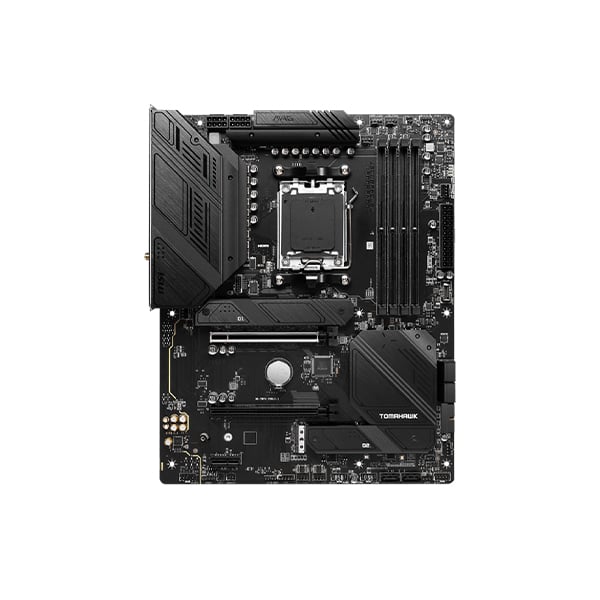

TheĀ MAG B650 TOMAHAWK WIFIĀ is a high-end gaming motherboard forĀ AMD RyzenĀ processorsĀ on socket AM5. It will allow you to design a high-performance gamer PC based on the most powerful components on the market, such asĀ AMD Ryzen 7000 processors, PCI-Express 4.0 16x graphics cards, M.2 TheĀ MAG B650 TOMAHAWK WIFIĀ motherboard from MSI’s Arsenal Gaming range has a deep black look and military-inspired elements. And as well as being stylish, this motherboard has all the features to give you great gaming power.
PLAY IN THE BEST CONDITIONS
The high frequencies ofĀ AMD Ryzen Zen 4Ā processors are a real advantage in gaming. Choose the right components and design a gaming PC that’s powerful, latency-free, and ready to serve when needed. Gain an edge over your opponents and reach new heights withĀ AMD Ryzen 7000Ā processors andĀ AMD AM5Ā motherboards.
AMD Ryzen 7000Ā processors deliver performance in all areas. They’ll help you create faster, achieve your goals faster, and save time all the time. Whether it’s 3D rendering or exporting large video files, design, deliver and get the job done with speed and PCIe 5.0 storage, multiple processing threads and dedicated video accelerators.
Supports AMD Ryzenā¢ 7000 Series Desktop Processors
Socket AM5
MEMORY
4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
ONBOARD GRAPHICS
1x HDMIā¢
Support HDMITMĀ 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
2x PCI-E x16 slot
Support x16/ x4
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x2 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE
3x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices * SATA_A1_A2 do not support RAID function.
USB
2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN
RealtekĀ®Ā RTL8125B 2.5Gbps LAN
WIRELESS / BLUETOOTH
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports BluetoothĀ®Ā 5.3**
* Wi-Fi 6E 6GHz may depend on every countryās regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIO
RealtekĀ®Ā ALC4080 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
