All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode ā a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AiO) cooler. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. Thereās also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AiO cooler can also be controlled via the UEFI BIOS. Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance. UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Advanced Tuning for Serious Tweakers COOLING
Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Heatsinks
Removable captive screws reduce risk of drops or loss during heatsink removal. M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers.
VRM Heatsinks and High-quality Thermal Pads
Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. Cooler by Design
Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort**
1 x HDMIĀ®***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support max. 4K@60Hz as specified in DisplayPort 1.4.
*** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
IntelĀ®Ā 12thĀ Gen Processors*
1 x PCIe 5.0/4.0/3.0 x16 slot
IntelĀ®Ā Z690 Chipset**
1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x16 slots (support x4 mode)
1 x PCIe 3.0 x1 slot
* Please check PCIe bifurcation table in support site.
** Supports IntelĀ®Ā Optane Memory H Series on PCH-attached PCIe slot
Storage
IntelĀ®Ā 12thĀ Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110
– IntelĀ®Ā 12thĀ Gen processors support PCIe 4.0 x4 mode.
IntelĀ®Ā Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

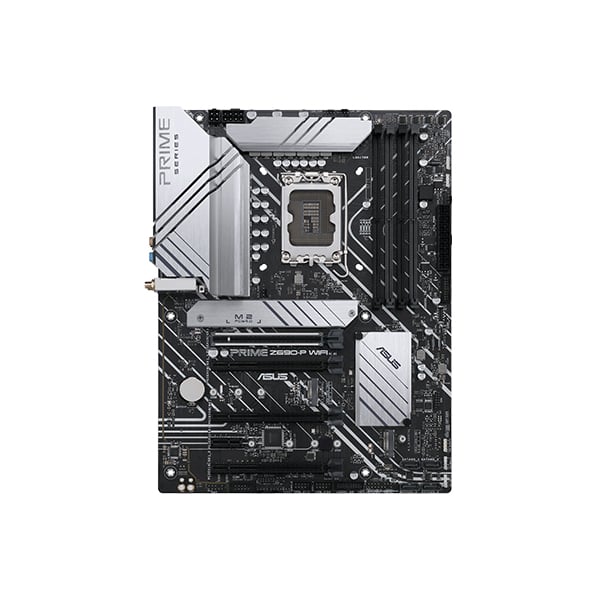

Save -13%! This Asus Prime Z690-P WIFI LGA 1700 ATX Motherboard can be yours for only Rs.143,222.00Rs.125,000.00. If you have any questions, Chat with Us.
